Guitar Tuner Drill Jig/Luthier tools

Guitar Tuner Drill Jig/Luthier tools

Item NO.: 25957885

Detail

PRODUCT DESCRIPTION:

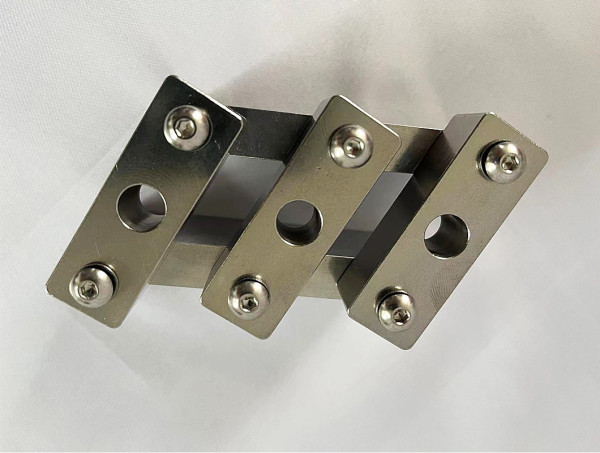

Guitar Tuner Drill Jig for Slotted Headstocks

Drilling perfectly aligned pegholes is a tricky and difficult job, and for slotted headstocks it can be downright awful. It's all too easy to get just slightly off-center, chip out the walls of the slots, or drill too far. Even if you have a drill press, this very delicate operation takes serious planning.

Misaligned, off-center pegholes not only look terrible, they also cause tuning problems.



The product is designed with professional drilling to keep your drill bit straight, perfectly spaced and centered.

Use your drill press or hand drill with ease and precision. No need to mess with additional bushings.

Each swiveling aluminum jig maintains the 1-3/8" (35mm) hole spacing for string posts or rollers.

Clamp the jig on any peghead from 1/2" (12.7mm) to 1-1/8" (28.58mm) thick. Use the supplied 13/32" (10.32mm) bit for classical machines.

Comes with instructions for use
